Combination of smart grid and sensors designed for low-cost, fast and safe installation.

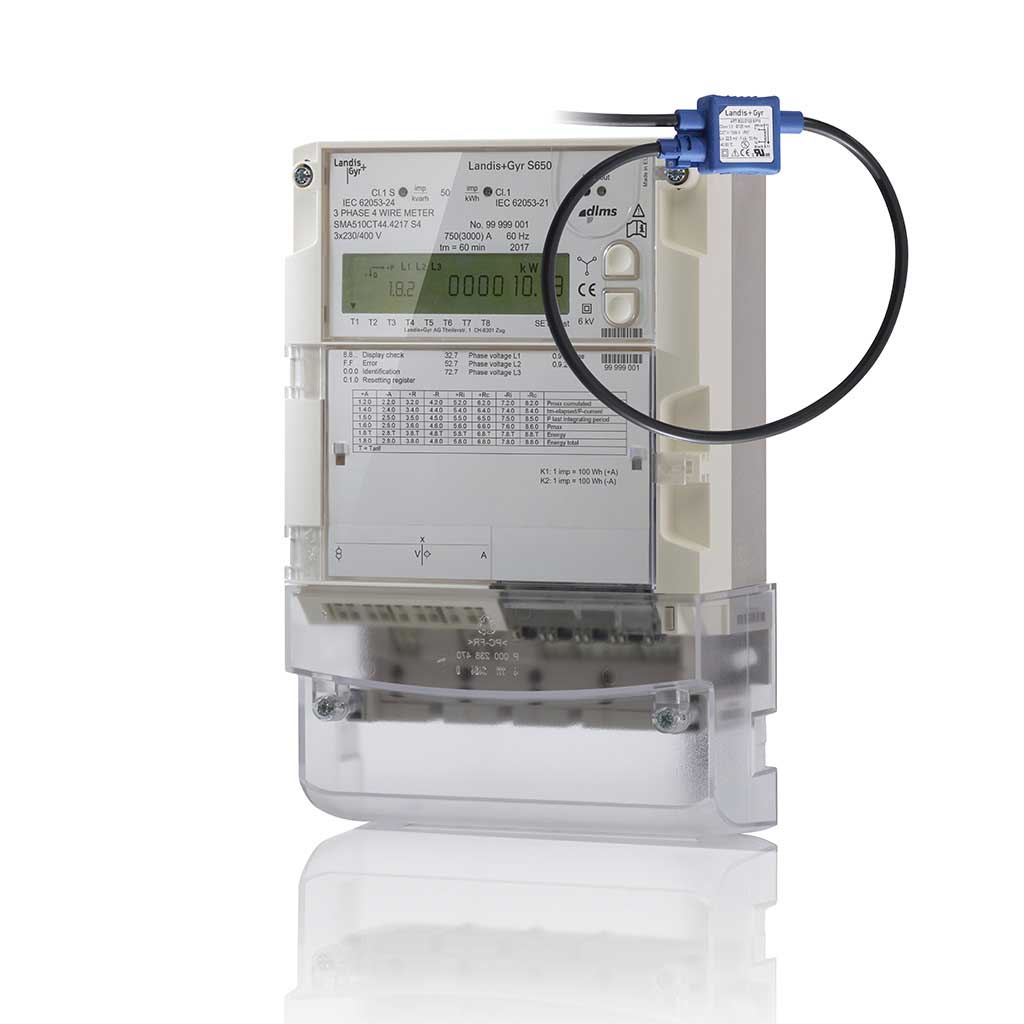

The S650 SMA510AT/CT Smart Grid Terminal is especially designed to improve network visibility in a cost-efficient and easy way at existing installations such as:
- Medium/low voltage transformer stations
- Distributed energy renewables
- Low voltage switchboards.
This market leading solution has been developed based on the proven industrial meter E650 and now incorporates 3 Rogowski sensors suitable for use across a wide current range between 200A and 3000A.
The easy “Click-and-Twist” installation of the Rogowski coils requires less than one hour, without any power interruption, resulting in a safe installation upgrade as well as offering significant time and cost savings.
S650 SMA510AT/CT is compatible with all plug-and-play E65C communication modules.

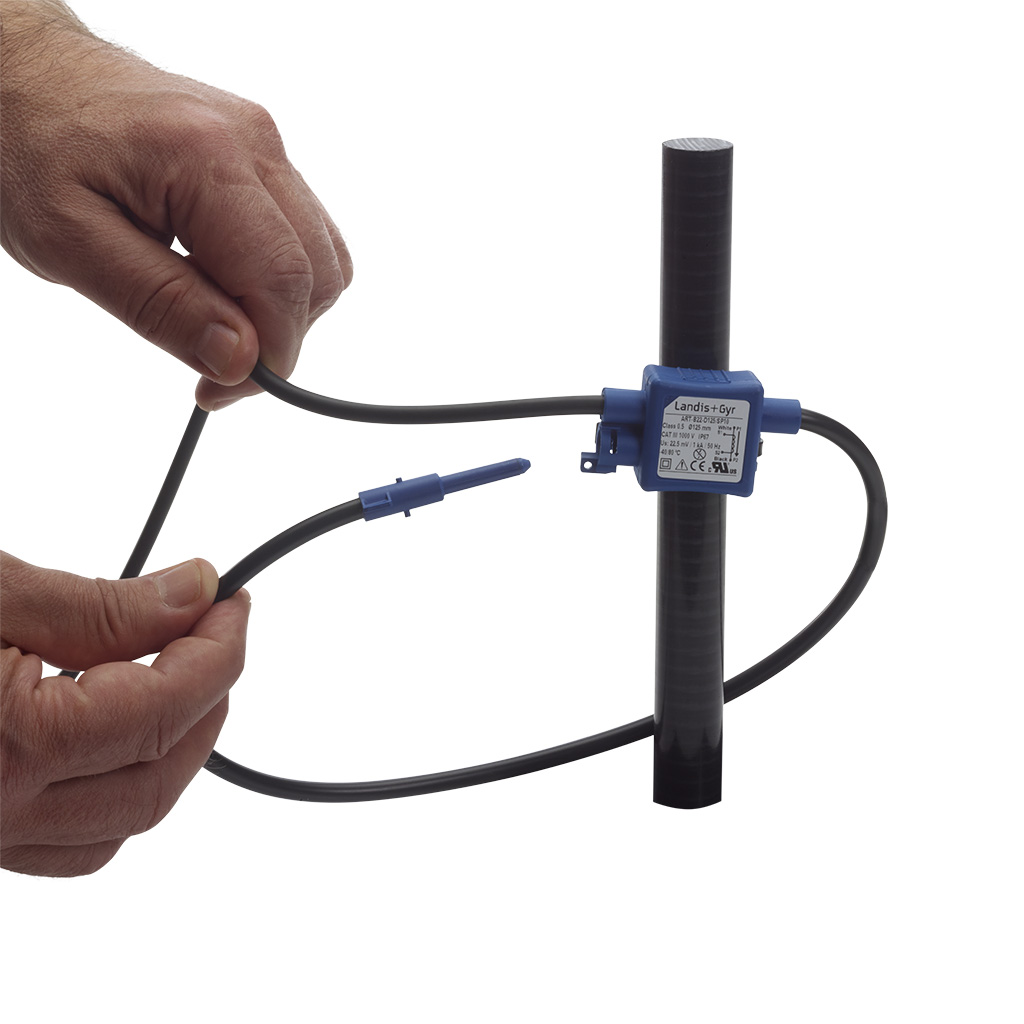

"Easy Quick & Twist”installation of the Rogowski sensors"
- Powerful energy, voltage and power measurements
- Operating time measurement
- Alarming functions incl. customized SMS alarming on event
- Two load profiles and up to 1000 events recorded
- Calendar clock
- Compatible with all E65C communication modules (integrated), suitable for all modern communication requirements
- Set of 3 Rogowski coils assembled and precalibrated in factory, suitable for up to 3000A
- Super capacity as option with15s last gasp reserve
