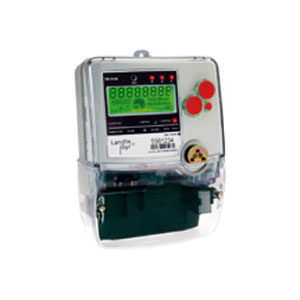

Landis+Gyr EM5100

Description:

The EM5100 offers increased flexibility by fulfilling more of your varied site requirements in the one meter, including:

• The extended range 125A whole current option designed for the extreme Australian environment
• 5-20 Amp Current Transformer option for applications larger than 125A
• 2 Amp volt free contactor for power cycling of modem power supplies and contactors in demand management applications
• Optional 30 Amp internal load control relay proving easy to install cost effective load management
• 4 programmable solid state relay retransmission pulsed outputs providing easy energy management system interfacing

Applications

Advanced energy analysis and management
The advanced measurement and analysis capabilities of the EM5100 deliver crucial decision making tools to your energy management team. With a broad range of energy measurement features, the EM5100 meter contributes to more efficient energy management by providing:

• Comprehensive measuring quantities including kWh, kVARh, and kVAh (import/export/per phase/per quadrant) plus pulse inputs selectable in 8 energy and 4 demand (up to 8 rate TOU) registers
• Up to 12 load profile channels (2 separately secure groups of 6 channels) with interval length & memory allocation user selectable per channel
• Quality of supply registers for voltage, current, power factor & frequency
• Primary rating capable for CT ratios
• Programmable load control for external equipment energy management

Advanced design for performance and longevity
A breakthrough in user-friendly energy metering and demonstrating remarkable durability under harsh conditions, the EM5100 meter exceeds all international design requirements.

• Lower installation costs by maintaining the Landis+Gyr footprint (SDM, Q3,Q4)
• Reliable security with all data saved into non volatile memory and 3 levels of encrypted password protection plus lockout function
• 10kV lightning withstand, IP53 enclosure rating & EMC conformance to all IEC requirements

Accessories

* TC51

* ML51

* GS51

* SiteWizard
