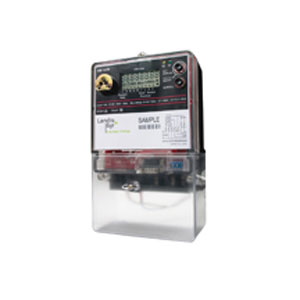

Landis+Gyr EM1200

The EM1200 is a fully programmable single phase multi-function watt hour meter providing an affordable solution to your dynamic metering requirements through comprehensive and advanced functionality. With the very fast download times of the Landis+Gyr proprietary protocol (90 days of ½ hour intervals in less than 5 seconds) the meter will meet the current and… Přečtěte si více

Kontaktujte nás

Description:

The EM1200 is a fully programmable single phase multi-function watt hour meter providing an affordable solution to your dynamic metering requirements through comprehensive and advanced functionality.

With the very fast download times of the Landis+Gyr proprietary protocol (90 days of ½ hour intervals in less than 5 seconds) the meter will meet the current and future needs of a continually changing power industry.

Major features of the EM1200 series meter include:

Applications

Quality-of-supply (QOS) monitoring (optional)

  • Instantaneous voltage and independent element currents
  • Load profiling for each element current and system voltage
  • Event logging of voltage sags and swells with programmable selection of voltage range and the time period to initiate an event

Multiple communications options

  • Optical port for local reading using laptop.
  • PCs or hand held units; RS232 for remote communications via modems – PSTN, GSM, GPRS and CDMA etc.
  • RS485 (optional) for communications between meters at multiple meter locations
  • Advanced functionality for home energy monitoring (optional)

Accessories
ML12



Vlastnosti

Advanced measurement and demand controls

  • Four metering quantities directly calculated by the measurement circuits
  • Four energy tariff rates, five day types, four seasons, special dates such as holidays and the start/end of daylight saving
  • Net metering for green power tariffs.
  • Load profile recording with twelve channels available
  • Separate forward and reverse energy registration on both elements
  • Load control through the use of up to two direct time switched or ripple controlled load control relays
  • Two programmable pulses.
Dostupnost
  • Asia-Pacific
